Electric Hot Water Heater Piping Diagram

This water heater requires a 240 volt electrical connection for. An electric water heaters wiring diagram enables someone to completely rewire a water heater even after removing all of the wires and parts. Water heaters contain three basic electrical components.

consent form template for minors blank movie ticket invitation template emission spectra and energy levels worksheet answers daycare invoice template free board of directors meeting minutes template doc emg pickup wiring diagram dependable skills resume credit reference letter template

Water Heater Piping Connections Installation

How To Install Two Water Heaters

Elements thermostats and a high temperature limit switch.

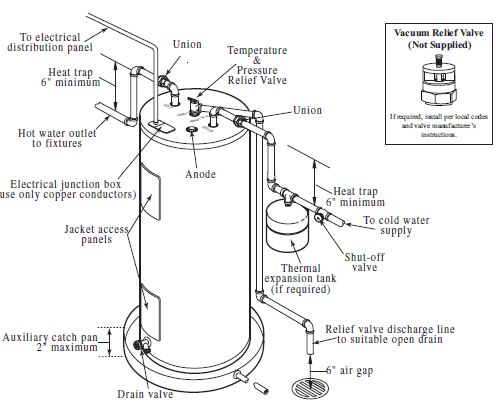

Electric hot water heater piping diagram. Ao smith c2018 a. Here we describe the plumbing connections and piping options for hot water system hook ups. Guide to water heater or geyser installation. In the above diagram i shown that the upper water heater element is switched off and lower heater element is switch on.

Heat pump water heaters. Heat pump water heaters. Commercial electric piping diagrams. Gas pipe cold water pipe hot water pipe union return circulation line shut off valve circulation pump pressure relief valve check valve cold water isolator valve assembly hot water isolator valve assembly tankless water heater installation diagrams ez link manifold installation optional return circulation this drawing is intended as a guide only.

Residential commercial piping diagrams. Water heater piping installation connections. Icon gas valve. In most cases the limit switch and the thermostat share a plastic housing.

Gas water heaters. Venting installation diagrams examples for non condensing tankless water heaters. Note that these element is 220 volts ratings and you can also 440 volts heater elements but you need to provide the line supply my mean to lines or two hot wires supply 440 volts. The westinghouse residential electric water heater combines high the westinghouse residential electric water heater combines high quality stainless steel construction and energy efficient operation providing long draws of hot water without consuming large amounts of energy.

Commercial tank type electric description series piping diagram pdf piping diagram dwg commercial electric 1 unit dre dse dve aosce61010 aosce61010 commercial electric 1 unit with vertical storage tank dre dse dve aosce61020 aosce61020 commercial electric 1 unit with horizontal. Takagi tankless water heaters provide endless hot water when sized appropriately for your homes needs. Smith reserves the right to make product changes or improvements at any time without notice. One volume water heater two pass with vertical tank.

We explain the piping for a basic water heater installation compared with options for connecting hot water heaters in parallel in series or ganged.
